Time：2020-04-02 15:31:17

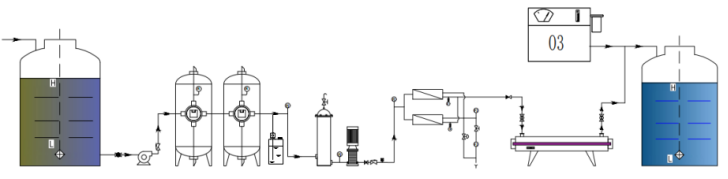

RO Water Treatment System for Juice&Beverage production - Slovakia customer Model: 4m3/hr RO Water Treatment System I. RO Water Treatment System Project background: In 2018/11 we got an inquiry from a Slovakia customer who is an owner of a local food & beverage manufacturing company. He is planning to start a new production line for producing Juice&Beverage, thus he asked if we could design the product water to meet the demand. After discussing with our engineers, we sent the technical quotation to him. We negotiated several times and the engineers of both sides also had communications regarding the project, he was very satisfied expertise and service, and finally decided to purchased the system from us. Therefore we received the deposit in 2018/12 and finished the system in 2019/01. After receiving the left payment in 2019/01, we arranged the shipping in 2019/02 and the client picked up the system in 2020/03. After operating for a period, the system is operating well and the client is very happy for that. He promised that if he would like to start a new production line in the future will definitely choose us. II. RO Water Treatment System Design basis: 1) Raw water: Well water, water report attached 2) Product water: Food&Beverage 3) Water temperature: 2—50℃ 4) Production capacity: 4TPH 5) Voltage: 400V, 50Hz, 3 phase 6) Power supply: 5.87KW 7) Size: L6×W1×H2.1(m) 8) Delivery: 12m3 after packaging III. RO Water Treatment System Process flow: IV. RO Water Treatment System Technical details: Name Specification Unit Feed water tank Material: PE/SUS/RC Capacity: 7m3 1 set Feed water pump Model: CHL8-40 Q= 7m3/h H= 37m Material: SUS304 Power: 1.5KW Brand: CNP/CHINA 1 set Accessories Base,regulating valve, check valve, etc. 1 lot Sand filter vessel Model: Φ800×2000(mm) Material: SUS304 Brand: JISHUI/CHINA 1 set Quartz sands Application: Get rid of turbidity, suspended matter, organic matters, colloid ,etc. Brand: JISHUI/CHINA 850 kg Control valve Model: AUTO-F75B Brand: RUNXIN/ CHINA 1 set Activated carbon filter vessel Model: Φ800×2000(mm) Material: SUS304 Brand: JISHUI/CHINA 1 set Activated carbon Application: Remove the color, free chloride, organic matter Brand: JISHUI/CHINA 275 kg Control valve Model: AUTO-F75B Brand: RUNXIN/ CHINA 1 set Antiscalant dosing pump Metering pump: KCL-635 Brand: SEKO/ITALY 1 set Chemical tank Material: PE Volume: 100L Brand: JISHUI/CHINA 1 piece Cartridge filter housing Material: SUS304 Model: Φ195×750 Filtration rating: 5μm Brand: JISHUI/CHINA 1 set Cartridge filter element Model: PP 30" Brand: JISHUI/CHINA 5 piece High pressure pump Model: CDM5-25 Q= 7.0m3/h H= 117m Material: SUS304 Power: 4.0KW Brand: CNP/CHINA 1 set Accessories Base,regulating valve, check valve, etc. 1 lot RO membrane Model: LP22-8040 Material: Aromatic poly-amide Desalination rate: 99.5% (single) Brand: VONTRON/CHINA 4 piece RO membrane housing Model: SUS304 Specification: 8040×2 Brand: JISHUI/CHINA 2 piece Accessories Valves, flow meters, pressure gauges, etc. 1 lot Ultraviolet sterilizer Material: SUS304 Wavelength: 254nm Power: 50W UV lamp: KADIND/USA 1 set Ozone sterilizer Material: SUS304 Model: QJ-20g Power: 320W Specifications: Air source Brand: JISHUI/CHINA 1 set Frame Material: SUS304 Brand: JISHUI/CHINA 1 set Full-auto Application: AC contractor, time relay, insurance etc electrical components, electric cabinet, Wire and cable. Brand: China famous brand 1 unit Pipes Low pressure pipeline High pressure pipeline Material: SUS304 Brand: JISHUI/CHINA 1 lot Product water tank Material: PE/SUS/RC Capacity: 4m3 1 set V. Why choose Haiyuan: Take 'Customer first, Integrity-based' as our core value, our company has offered hundreds of clients high-quality products with professional guidance and satisfied after-sale service.Hence, we are capable to show you our products range and guide you to choose the system best fit your needs. We will provide high-quality, all-round comprehensive professional services for project consulting, system design, manufacturing, installation and commissioning, personnel training, etc. VI. More inquiries regarding RO Water Treatment System: Whatsapp me or call me via +86 13544774483 Email : sales010@water-sy.com
harmful matter, etc.
Electrical controller system
