Time：2020-04-01 11:09:52

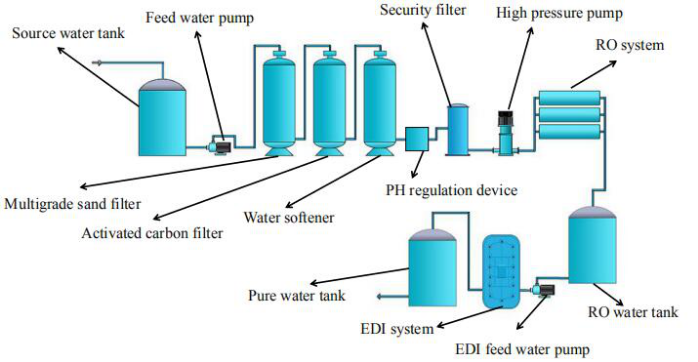

RO+EDI deionized water system for Coolants products - Saudi Arabian customers Model: 1000LPH RO+EDI deionized water system I. RO+EDI deionized water System Project background: In 2019/10 we got an inquiry from a Saudi Arabian customers that he would like to treat tap water by RO+EDI process, then used for coolants products, thus he asked if we could design the product water conductivity less than 3uS/cm. After discussing with our engineers, we sent the technical quotation to him. He was very satisfied with the quote so forwarded us to the maintenance manager who is in charge of this project, then the maintenance manager compare all quotes he received before, finally decided to cooperate with us as our system design and budget can meet the demand with good service. Therefore we received the deposit in 2019/11 and finished the system in 2019/12. After receiving the balance in 2020/01, we arranged the shipping in 2020/02 and the client picked up the system in 2020/03. After operating for a period, the system is operating well and the client is very satisfied for that. II. RO+EDI deionized water system Design basis: After searching the quality of tap water, our engineers design the process as RO+EDI system to produce water. EDI has advantages as below: (1) Low power consumption and stable product water quality (2) Simple structure which is safe and reliable (3) No need for acid-base regeneration so low consumables cost (4) No recycled sewage which is environmental-friendly III. RO+EDI deionized water system Process flow: IV. RO+EDI deionized water system Technical details: Name Specification Unit Source water tank Material: PE/SUS/RC Capacity: 3m3 1 set Feed water pump Model: CHL2-40 Q= 2.5m3/h H= 42m Material: SUS304 Power: 1.1KW Brand: CNP/CHINA 1 set Accessories Base,regulating valve, check valve, etc. 1 lot Sand filter Model:Φ460×1670(mm) Material: FRP Brand: JISHUI/CHINA 1 set Quartz sands Application: Get rid of turbidity, suspended matter, organic matters, colloid ,etc. 200 kg Control valve Use: AUTO-F67B Brand: RUNXIN/CHINA 1 set Activated carbon filter Model:Φ460×1670(mm) Material: FRP Brand: JISHUI/CHINA 1 set Activated carbon Application: Remove the color, free chloride, organic matter, harmful matter, etc. 75 kg Control valve Use: AUTO-F67B Brand: RUNXIN/CHINA 1 set Water softener Model:Φ460×1670(mm) Material: FRP Brand: JISHUI/CHINA 1 set Resin Model: 001×7 100 liter Control valve Use: AUTO-F63B Brand: JISHUI/CHINA 1 set Salt tank Material: PE Volume: 100L 1 piece pH regulation device Metering pump: KCL-635 Brand: SEKO/ITALY 1 set Chemical tank Material: PE Volume: 40L 1 piece Accessories PH sensor, valve fittings, etc. 1 lot Security filter housing Material: Stainless Steel Specifications: Φ159×500 Brand: JISHUI/CHINA 1 set Security filter element Model: PP 20" 1 piece High pressure pump Model: CR3-21/2.2kw Q=2.5m3/h H=118m Material: SUS304 Brand: GRUNDFOS/DENMARK 1 set Accessories Base,regulating valve, check valve, etc. 1 lot RO membrane Model: LP21-4040 Specification: 4040 Material: Aromatic poly-amide Desalination rate: 99.5% (single) Brand: VONTRON/CHINA 5 piece RO membrane housing Material: SUS304 Specification: 4040×1 Brand: JISHUI/CHINA 5 piece Accessories Valves, flow meters, pressure gauges, etc. 1 lot RO water tank Material: PE/SUS/RC Capacity: 1.5m3 1 piece EDI feed water pump Model: CHL2-30/0.75KW Q= 1.0m3/h H= 37.5m Material: SUS304 Brand: CNP/CHINA 1 set Accessories Base,regulating valve, check valve, etc. 1 lot EDI system Model: PND-1000L/500W Brand: PND/CHINA 1 set Accessories EDI power supply×1 Flow Switch ×1 Flow meter×2 Pressure gauge×2 Brand: Chinese famous brands 1 lot Frame Material: Stainless Steel 1 set Full-auto Application: AC contact-or, time relay, insurance etc electrical components, electric cabinet, Wire and cable. Brand: China famous brand 1 unit Pipes Low pressure pipeline Material: UPVC 1 lot High pressure pipeline Material: SUS304 1 lot Pure water tank Material: PE/SUS/RC Capacity: 1m3 1 piece V. Why choose Haiyuan: Take 'Customer first, Integrity-based' as our core value, our company has offered hundreds of clients high-quality products with professional guidance and satisfied after-sale service.Hence, we are capable to show you our products range and guide you to choose the system best fit your needs. We will provide high-quality, all-round comprehensive professional services for project consulting, system design, manufacturing, installation and commissioning, personnel training, etc. VI. More inquiries regarding RO+EDI deionized water system: Whatsapp me or call me via +86 13544774483 Email : sales010@water-sy.com
Electrical controller system
