Time：2020-04-07 16:50:48

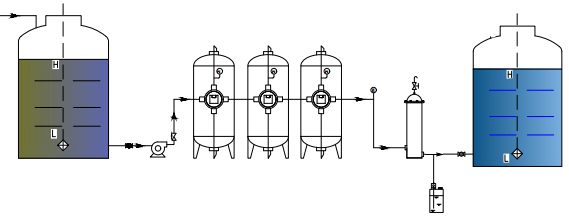

Potable water treatment plant for Mining project - Tanzanian customer Model: 3.5 m3/hr Potable water treatment plant I. Potable water treatment plant Project background: In 2018/04 we got an inquiry from a Tanzanian customer who is seeking quotation to supply a suitable 3.5 m3/hr Potable Water treatment Plant based on an filtration, softener, carbon filtration, chlorination style to produce drinking water for our Mining Project in Tanzania. He said that this unit must be supplied as containerized unit to make ease of installation and maintenance. We discussed that our system will designed to be integrated as one unit which is easy for installation and maintenance. For importing by 20ft container is not so cost-effective. Finally he agreed with our suggestion. Thus we received the deposit in 2018/05 and finished the system in 2018/06. After receiving the left payment in 2018/06, we arranged the shipping in 2018/07 and the client picked up the system in 2018/08. After operating for a period, the system is operating well and the client is very satisfied for that. He said that he would like to cooperate with us again if have chance in the future. II. Potable water treatment plant Design basis: 1. Raw water: Borehole water, water report attached 2. Product water: Drinking water for mining project. 3. Water temperature: 2—50℃ 4. Production capacity: 3.5m3/hr 5. Voltage: 415V 50Hz, 3 phase 6. Power supply: 0.75kw/hr 7. Size: L2.0×W1.2×H2.0(m) 8. Delivery: 7m3 after packaging III. Potable water treatment plant Process flow: IV. Potable water treatment plant Technical details: Name Specification Unit Feed water tank Material: PE/SUS Capacity: 4m3 1 set Liquid level controller Brand: LIPU/CHINA 1 set Feed water pump Model: CHL4-40 Q= 3.5m3/h H= 33m Material: SUS304 Power: 0.75KW Brand: CNP/CHINA 1 set Accessories Base,regulating valve, check valve, etc. 1 lot Sand filter vessel Model: Φ500×1750(mm) Material: FRP Brand: JISHUI/CHINA 1 set Quartz sands Application: Remove turbidity, suspended matter, organic matters, colloid ,etc. in the water. Brand: JISHUI/CHINA 250 kg Control valve Model: AUTO-F67B Brand: RUNXIN/ CHINA 1 set Activated carbon filter vessel Model: Φ500×1750(mm) Material: FRP Brand: JISHUI/CHINA 1 set Activated carbon Application: Remove the color, free chloride, organic matter Brand: JISHUI/CHINA 75 kg Control valve Model: AUTO-F67B Brand: RUNXIN/ CHINA 1 set Water Softener vessel Model: Φ500×1750(mm) Material: FRP Brand: JISHUI/CHINA 1 set Resin Application: Soft the water by ion-exchange Model: 001×7 Brand: ZG/CHINA 125 liter Control valve Model: AUTO-F63B Brand: RUNXIN/ CHINA 1 set Brine tank Material: PE Volume: 200L 1 piece Salt valve, salt plate Brand: JISHUI/CHINA 1 set Industrial salt Brand: JISHUI/CHINA 100 kg Cartridge filter Material: SUS304 Model: Φ195×500(mm) Brand: JISHUI/CHINA 1 set Cartridge filter element Model: PP 20" Brand: JISHUI/CHINA 5 piece Chlorination system Metering pump: KCL-635 Brand: SEKO/ITALY 1 set Chemical tank Material: PE Volume: 40L Brand: JUSHUI/CHINA 1 piece Electrical components Brand: JISHUI/CHINA 1 set Main rack Material: Stainless steel Brand: CHINT/CHINA 1 set Accessories Flow meters, pressure gauges, etc. 1 lot Pipes Low pressure pipeline Material: UPVC Brand: JISHUI/CHINA 1 lot Product water tank Material: PE/SUS/RC Capacity: 3.5m3 1 set Liquid level controller Brand: LIPU/CHINA 1 set V. Why choose Haiyuan: Take 'Customer first, Integrity-based' as our core value, our company has offered hundreds of clients high-quality products with professional guidance and satisfied after-sale service.Hence, we are capable to show you our products range and guide you to choose the system best fit your needs.We will provide high-quality, all-round comprehensive professional services for project consulting, system design, manufacturing, installation and commissioning, personnel training, etc. VI. More inquiries regarding Potable water treatment plant: Whatsapp me or call me via +86 13544774483 Email : sales010@water-sy.com
harmful matter, etc. in the water.
