Time：2020-04-14 17:22:04

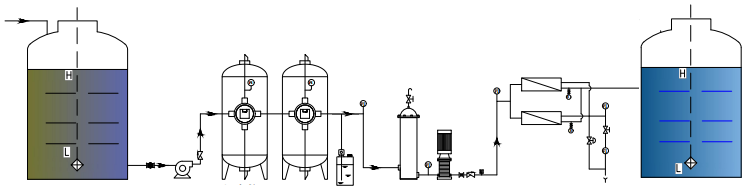

Reverse Osmosis Water Treatment Plant for water recycle from Cooling tower system - Thai customers Model: 50TPH Reverse Osmosis Water Treatment Plant I. Reverse Osmosis Water Treatment Plant background: In 2018/11 we got an inquiry from an engineer from Thailand, and his company supplied the equipment and chemical for water and waste water treatment systems. He has a customer who is looking for Reverse Osmosis Water Treatment Plant capacity 50 cubic meter/hour for water recycle from cooling tower system. The total dissolved solids of water is 3,000 -3,500 ppm and the product water that I need is 50-100 ppm of total dissolved solids. We made the proposal based on the demand and offered the quote to the engineer. After checking with the customer, the engineer told us that the customer is satisfied with our quotes but for some steps need to adjust, after checking all details, the customer is happy for the final proposal we offer and send us the deposit in 2018/12, we finished the system in 2019/01. After receiving the left payment in 2019/02, we arranged the shipping in 2019/02 and the client picked up the system in 2019/02. As this is a big project so we send the technician team to the place and help customer install, commission and train the staff, in 2019/03 the system finally be well-installed and well-operated. The customer and engineer was very happy for that and said that is any other inquiries in the future will contact us first. II. Reverse Osmosis Water Treatment Plant Design basis: 1. Raw water: TDS=3,000-3,500 ppm 2. Product water: TDS=50-100 ppm, Theoretical value TDS<60ppm 3. Usage: For Water Recycle from Cooling Tower System 4. Production capacity: 50m3/hr 5. Voltage: 380V 50Hz, 3 phase 6. Power supply: 78.5KW 7. Delivery: 40ft High Container×2 III. Reverse Osmosis Water Treatment Plant Process flow: IV. Reverse Osmosis Water Treatment Plant Technical details: Name Specification Quantity Feed water tank Material: PE/SUS/RC Capacity: 70m3 1 set Liquid level controller Brand: LIPU/CHINA 1 set Feed water pump Model: ZS80-65-200/18.5 Q= 70m3/h H= 48.7m Material: SUS304 Power: 18.5KW Brand: CNP/CHINA 1 set Accessories Base,regulating valve, check valve, etc. 1 lot Sand filter vessel Model:Φ1500×2400(mm) Material: FRP Brand: HY/CHINA 2 set Quartz sands Arrangement: 3000kg for each vessel Brand: HY/CHINA 6000 kg Control valve Model: AUTO-F112B Brand: RUNXIN/CHINA 2 set Activated carbon filter vessel Model:Φ1500×2400(mm) Material: FRP Brand: HY/CHINA 2 set Activated carbon Arrangement: 1000kg for each vessel Brand: HY/CHINA 2000 kg Control valve Model: AUTO-F112B Brand: RUNXIN/ CHINA 2 set Scale inhibition dosing pump Metering pump: KCL-830 Brand: SEKO/ITALY 1 set Chemical tank Material: PE Volume: 500L Brand: HY/CHINA 1 piece Mixing equipment Brand: HY/CHINA 1 set Inhibitor Brand: HY/CHINA 25 kg Accessories Valve fittings, pipes, etc. 1 lot Cartridge filter housing Material: SUS304 Specification: Φ500×1000 Brand: HY/CHINA 1 set Cartridge filter element Model: PP 40" Brand: HY/CHINA 38 piece High pressure pump Model: CDM32-150 Q= 34m3/h H= 198m Material: SUS304 Power: 30KW×2 Brand: CNP/CHINA 2 set Accessories Base,regulating valve, check valve, etc. 1 lot RO membrane Model: FR12-8040 Specification: 8040 Material: Aromatic poly-amide Desalination rate: 99.8% (single) Brand: VONTRON/CHINA 54 piece RO membrane housing Material: FRP Specification: 8040×6 Brand: HY/CHINA 9 piece Accessories Valves, flow meters, pressure gauges, etc. 1 lot Cleaning the RO membrane regularly can help to restore the performance of RO membrane and prevent the blockage of RO membrane. Chemical cleaning device (Pump) Model: ZS65-65-200/7.5 Material: SUS316 Power: 7.5KW Brand: CNP/CHINA 1 set Chemical cleaning device (Security filter) Material: FRP Brand: HY/CHINA 1 set Chemical cleaning device (Security filter element) Model: PP 60" Brand: HY/CHINA 1 piece Chemical cleaning device (Water tank) Material: PE Volume: 3000L Brand: HY/CHINA 1 piece Frame Material: Carbon Steel Brand: HY/CHINA 1 set Full-auto Application: AC contact-or, time relay, insurance etc electrical components, electric cabinet, Wire and cable. Brand: China famous brand 1 unit Pipes Low pressure pipeline Material: UPVC Brand: HY/CHINA 1 lot High pressure pipeline Material: SUS304 Brand: HY/CHINA 1 lot Product water tank Material: PE/SUS/RC Capacity: 50m3 1 set V. Why choose Haiyuan: Take 'Customer first, Integrity-based' as our core value, our company has offered hundreds of clients high-quality products with professional guidance and satisfied after-sale service.Hence, we are capable to show you our products range and guide you to choose the system best fit your needs. We will provide high-quality, all-round comprehensive professional services for project consulting, system design, manufacturing, installation and commissioning, personnel training, etc. VI. More inquiries regarding Reverse Osmosis Water Treatment Plant: Whatsapp me or call me via +86 13544774483 Email : sales010@water-sy.com
Electrical controller system
