1500LPH Desalinator
RO desalinator| Seawater treatment plant
A.Desalinator design basis
- Raw water : seawater with TDS 35000 ppm
- Production capacity:30 m³/ day, 1500 liters/hr
- Product water : for domestic use
- Voltage and frequency: 3PH 440V/60HZ,13.2KW
B. RO desalinator control method
Whole system use full automatically control model, both model can be exchanged accordingly. Media filter with auto and manual back flush.The RO system automatic flushing at each start-up and shutdown. High water level auto stop, low water level auto start.Pump protected without water.Protected when no power, poor power, larger electrical current, leakage, short circuit.
C. Seawater treatment plant process flow
Raw water tank →Raw water pump →Multi-media filter → Scale inhibition→ 5μSecurity filter → 1μSecurity filter → High- pressure pump → RO system (CIP)→ Product water tank
D. Desalinator 1500LPH configuration details
| Name | Specification | Qty |
| Raw water tank | 5m³,PE/SUS | 1 |
| Raw water pump | Model: | 1 |
| CHL8-30,Q=5,H=42 | ||
| Material : SUS316L | ||
| Power: 3PH 440V/60HZ,2.2KW | ||
| Multi-media filter | Model:Φ750×1850(mm),FRP | 1 |
| Filter material: silica sand:700kg | ||
| Automatic control valve:F75 | ||
| Scale inhibition | Dosing pump: KCL 635 | 1 |
| Chemical tank: PE 40L | ||
| Security filter 5μ | Model:UVPC,Φ225×700(mm) | 1 |
| Filter element: PP20’’*5 | ||
| Security filter 1μ | Model:UVPC,Φ225×700(mm) | 1 |
| Filter element:PP20’’*5 | ||
| High-pressure pump | Model:PT-80LPM,Q=4.6,H=60 | 1 |
| Material : SUS316 | ||
| Power: 3PH 440V/60HZ,11KW | ||
| RO membrane | Model:SW8040HR-400 | 3 |
| Salt rejection: 99.8% | ||
| RO system | Recovery: 33% | 1 |
| Design temperature:25 ℃ | ||
| Membrane vessel: | ||
| FRP 8040*3(1000PSI)*1 | ||
| Flow meter,concentrated water flow meter,TDS meter | ||
| Product water tank | 1.5m³,SUS/PE | 1 |
| CIP | Cleaning pump: | 1 |
| CHL8-20, SUS316 | ||
| 3PH 440V/60HZ,1.5KW | ||
| Cleaning filter: UVPC , | ||
| Φ225×1100(mm) | ||
| Cleaning tank:PE 300L | ||
| Electrical control system | circuit breaker, contactor, thermal relay,,etc | |
| Pipe material | Low-pressure: UVPC | |
| High-pressure: SUS316 | ||
| System accessories | valves,flow meter, pressure gauge,electrical fittings,etc |

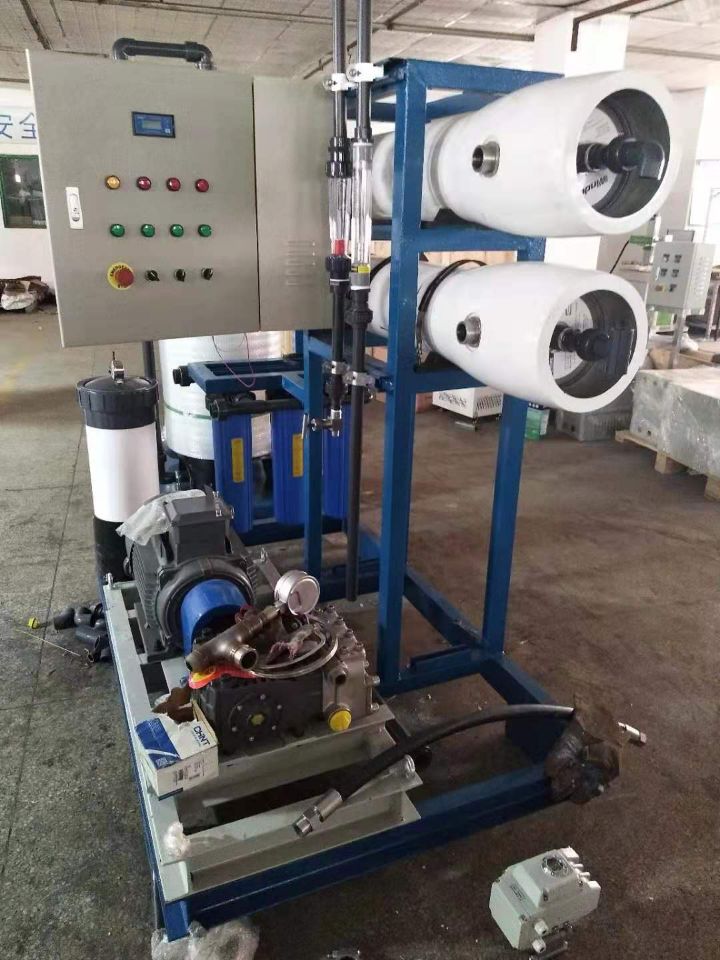

(The picture about Desalinator 1500LPH)
E.RO desalinator trade terms
- Price term: EXW
- Payment term: 30% deposit advanced, 70% balance payment before delivery.
- Package size: L6*W1*H2.1(m) ,12m³
- Assembly time: 6 weeks (from the date of receipt of payment)
- Warranty Period: 1 year
Seawater treatment plant please contact:
Email: Sales@seawaterroplants.com
Mob&WeChat&WhatsApp: +8618825874379/+8613922972795
More inquiries related to desalinator,RO desalinator,seawater treatment plant(different salt content, capacity, voltage), please feel free to contact us!
We will provide high-quality, all-round comprehensive professional services for project consulting, system design, manufacturing, installation and commissioning, personnel training, etc.
