Time：2020-09-27 16:51:07

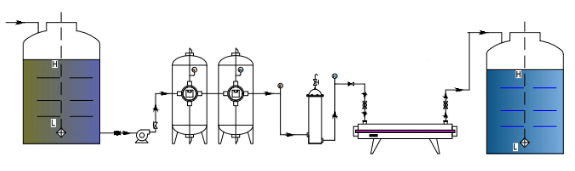

Iron and manganese removal filter - Angolan customer Model: 5TPH Iron and manganese removal filter I. Iron and manganese removal filter background: In 2019/09 we received the inquiry, the clients need the filter with backwash system to remove iron and clean river water, then used for tap water. It will be going to work as pre filter and After this one, the water will go through UV lights. Based on his demand we offer the quote for their reference. Finally they choose us to cooperate for our professtional service and proposal, then we receive the total payment in 2019/09 and arrange delivery in 2019/11. Then in 2019/12 the client received the system and operated well based on the instruction manual we send. II. Iron and manganese removal filter Design basis: 1. Raw water: River water (no water report) 2. Product water: Tap water 3. Water temperature: 2—50℃ 4. Production capacity: 5000 liters/hour 5. Voltage:1PH x 220V, 50Hz 6. Power supply: 1.2KW 7. Size: L3×W1×H2.1(m) 8. Delivery: 8CBM after packaging III. Iron and manganese removal filter Process flow: Feed water tank → Feed water pump → Sand filter → Iron and Manganese removal filter → Cartridge filter → UV sterilizer → Product water tank IV. Iron and manganese removal filter Technical details: Name Specification Quantity Feed water tank Material: PE/SUS/RC Capacity: 5m3 1 set Liquid level controller Brand: LIPU/CHINA 1 set Feed water pump Model: CM5-5 Material: SUS304 Power: 1.2KW Brand: GRUNDFOS/DENMARK 1 set Flow meter Model: 1-6T 1 piece Accessories Base,regulating valve, check valve, etc. 1 lot Sand filter Model: Φ750×1850(mm) Material: FRP 1 set Control valve Model: AUTO/N75B Brand: RUNXIN/CHINA 1 set Quartz sands Application: Remove turbidity, suspended matter,etc. 700 kg Iron and Manganese removal filter Model: Φ750×1850(mm) Material: FRP 1 set Control valve Model: AUTO/N75B Brand: RUNXIN/CHINA 1 set Manganese sand Application: Remove iron, manganese, arsenic,etc. 700 kg Cartridge filter Material: SUS304 Model: Φ195×500(mm) 1 set filter element Model: PP 20" 5 piece Ultraviolet sterilizer Material: SUS304 Wavelength: 254nm Power: 65W UV lamp: KADIND/USA 1 set Electrical controller system Auto control, Auto operation Electrical accessories,etc. 1 set Pipes Material: UPVC 1 lot Product water tank Material: PE/SUS/RC Capacity: 5m3 1 set Liquid level controller Brand: LIPU/CHINA 1 set V. Why choose Haiyuan: Take 'Customer first, Integrity-based' as our core value, our company has offered hundreds of clients high-quality products with professional guidance and satisfied after-sale service.Hence, we are capable to show you our products range and guide you to choose the system best fit your needs. We will provide high-quality, all-round comprehensive professional services for project consulting, system design, manufacturing, installation and commissioning, personnel training, etc. VI. More inquiries regarding Iron and manganese removal filter: Whatsapp me or call me via +86 13544774483 Email : sales010@water-sy.com
