Industrial underground water stainless steel sand filter ,sand filter carbon filter

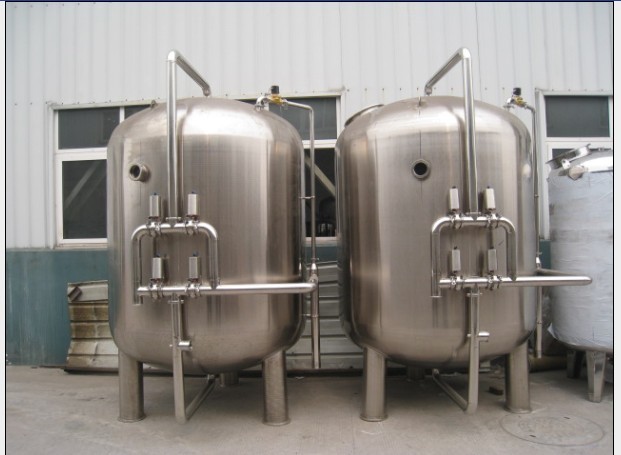

A. Industrial underground water stainless steel  sand filter

   Quartz sand filters are mainly used to remove suspended solids in water. This equipment is used in conjunction with other water treatment equipment. It is widely used in water treatment such as water purification, circulating water purification and sewage treatment.

   Activated carbon filter is mainly used to adsorb 99% of free chlorine in water. It also has a high removal rate of organic matter and color. It is a pretreatment equipment for the pure water process of the softening and desalination system. , Anti-corrosion, fiberglass, and stainless steel, etc.

B. Industrial underground water stainless steel  sand filter Process Flow

         25000L/H Industrial underground water stainless steel  sand filter

C. Characteristics of sand carbon filter:

1. Compact structure: The equipment integrates coagulation reaction, filtration and continuous cleaning. It simplifies the water treatment process, occupies a small area, has a simple structure, and is flexible and easy to install and operate. It reduces the energy consumption and manual management costs of multiple parts of the raw water treatment process, and reduces the difficulty of operation.

2. After the sand filtration, the effluent further reduces the turbidity of the effluent and effectively removes suspended solids and colloidal substances in the water.

3. Continuous self-cleaning and filtering: The filter medium is automatically circulated and continuously cleaned without backwashing without shutting down.

4. Reduce the suspended solids (SS) content of the raw water: with the micro-flocculation device, various industrial water, urban domestic sewage and industrial water with the highest SS≤mg / L as the reuse water, the removal rate ≥90%, to achieve perfect filtration effect.

5. Specially selected materials, long service life.

D. Application range of sand carbon filter:

(1) Used in industrial water, domestic water and municipal water supply systems that require effluent turbidity ≤5mg / L to meet drinking water quality standards;

(2) Removal of suspended matter and solid matter in industrial sewage;

(3) It can be used as the pretreatment equipment in the ion exchange method softening and desalination system, and the crude filtration equipment for industrial water supply with low water quality requirements;And used in swimming pool circulation treatment system, cooling circulation water purification system, etc.

E. Product data of Industrial underground water stainless steel  sand filter:

1. Sand filter:  stainless steel water tank with automatic valve

2. Carbon filter:  stainless steel water  tank with automatic valve

Would you please tell me the following true information in order to design a suitable program for you.

1. How many liters outlet water per hour do you require?(5000L/H,10000L/H, etc.)

2. Where is the source water from? (Eg,well water/borehole water, river water. etc.)- Do you have water analysis result or know the water quality?

3. After treated, The water meet WHO drinking water standard, or as per bottle water standard or other industrial purpose?

4. Your local power is 380V/50hz 3phase or 380V/60Hz 3 phase, 440/60hz 3 phase or other voltage?
