Time：2020-09-23 14:12:32

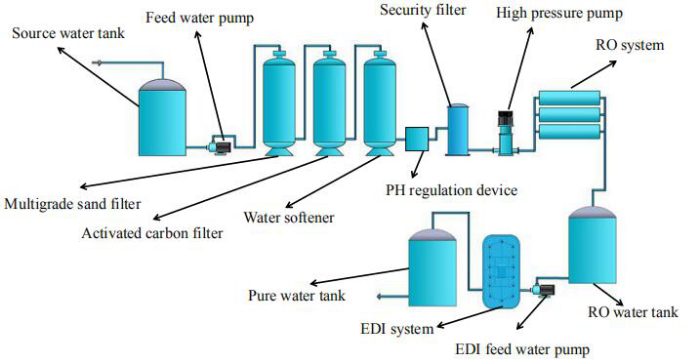

Tap Water Treatment for Medical and Lab use - Honduras customer Model: 250LPH RO EDI Deionized water treatment plant I. RO EDI Deionized water treatment plant background: In 2019/09 we received the inquiry, the client want to sell pure water for Medical and Lab use and the source water will be tap water. Based on their demand we offer the quote, and then they would like to increase a stainless steel water tank. Thus we update the quote. After a period, they said they find better price, thus we further discuss about technical details. Finally they choose us to cooperate for our professtional service and proposal, then we receive the deposit in the next week. In 2019/11 we receive the left payment and arrange the shipping. Then in 2019/12 the client received the system and operated well based on the instruction manual we send. They are very satisfied with our service and will recommend us to his friends. II. RO EDI Deionized water treatment plant Design basis: 1. Feed water: Tap water, design as TDS=500ppm 2. Product water: For Lab water and Pharmaceutical purified water 3. Water temperature: 2—50℃ 4. Production capacity: 0.25m3/hr 5. Voltage: 1PH x 110V, 60Hz 6. Power supply: 2.8KW 7. Size: L2.0×W0.8×H1.7(m) 8. Delivery: 4CBM III. RO EDI Deionized water treatment plant Process flow: IV. RO EDI Deionized water treatment plant Technical details: Name Specification Quantity Raw water tank Material: PE/SUS Capacity: 1m3 1 set Liquid level controller Brand: LIPU/CHINA 1 set Feed water pump Model: CHL2-30 Material: SUS304 Power: 0.75KW Brand: CNP/CHINA 1 set Accessories Base,regulating valve, check valve, etc. 1 lot Sand filter Model: Φ250×1350(mm) Material: FRP 1 set Control valve Model: AUTO-F71B Brand: RUNXIN/CHINA 1 set Quartz sands Application: Remove turbidity, suspended matter, organic matters, colloid ,etc. 75 kg Activated carbon filter vessel Model: Φ250×1350(mm) Material: FRP 1 set Control valve Model: AUTO-F71B Brand: RUNXIN/CHINA 1 set Activated carbon Application: Remove the color, free chloride, organic matter 25 kg Water Softener vessel Model: Φ250×1350(mm) Material: FRP 1 set Control valve Model: AUTO-F65B Brand: RUNXIN/CHINA 1 set Resin Model: 001×7 Brand: JISHUI/CHINA 50 liter Brine tank Material: PE Volume: 60L 1 set pH Metering pump Model: KCL-635 Brand: SEKO/ITALY 1 set Chemical tank Material: PE Volume: 40L 1 piece pH sensor Brand: CREATEC/CHINA 1 set Cartridge filter Material: Polyethylene Size: Φ110×600(mm) 1 set Filter element Model: PP 20" 1 piece High pressure pump Model: CDMF1-17 Material: SUS304 Power: 1.5KW Brand: CNP/CHINA 1 set Accessories Base,regulating valve, check valve, etc. 1 lot RO skid Recovery rate: 50% - Frame Material: Stainless Steel 1 set RO membrane Model: LP21-4040 Material: Aromatic poly-amide Desalination rate: 99.5% (single) Brand: VONTRON/CHINA 1 piece RO membrane vessel Model: SUS304 Specification: 4040×1 Brand: JISHUI/CHINA 1 piece Accessories Valves, flow meter, pressure gauge, etc. 1 lot RO water tank Material: PE/SUS Capacity: 0.5m3 1 set Liquid level controller Brand: LIPU/CHINA 1 set EDI booster pump Model: CHL2-20 Material: SUS304 Power: 0.55KW Brand: CNP/CHINA 1 set Accessories Base,regulating valve, check valve, etc. 1 lot EDI system Model: PLX-300L Power: 0.15KW Brand: PND/CHINA 1 set Accessories EDI power supply×1 Flow Switch ×1 Resistivity meter×2 Brand: Chinese famous brands 1 lot Electrical controller system Electrical components, circuit breakers, cont-actors, thermal relays, etc. 1 set Pipes Low pressure: UPVC High pressure: PPR 1 lot Pure water tank Material: SUS304 Size: Φ660×1400(mm) Volume: 0.5m3 1 set Liquid level controller Brand: LIPU/CHINA 1 set V. Why choose Haiyuan: Take 'Customer first, Integrity-based' as our core value, our company has offered hundreds of clients high-quality products with professional guidance and satisfied after-sale service.Hence, we are capable to show you our products range and guide you to choose the system best fit your needs. We will provide high-quality, all-round comprehensive professional services for project consulting, system design, manufacturing, installation and commissioning, personnel training, etc. VI. More inquiries regarding RO EDI Deionized water treatment plant: Whatsapp me or call me via +86 13544774483 Email : sales010@water-sy.com
harmful matter, etc.
