Solar powered automatic water purification system|
Reverse osmosis in water purification system|River water purification system 500L/hr
A.Solar powered automatic water purification system Technical Description
Reverse osmosis technology is one of the most advanced and energy-saving effective separation technology. The separation characteristics of reverse osmosis can effectively remove dissolved salts, colloids, organic matter, bacteria and other impurities in water. It has the advantages of low energy consumption, no pollution, advanced technology and easy operation.
B.Reverse osmosis in water purification system process
Source water tank →Feed water pump →Sands filter→(Active carbon filter)→Security filter→High pressure pump→RO system→RO tank
(Client prepares all water tanks)

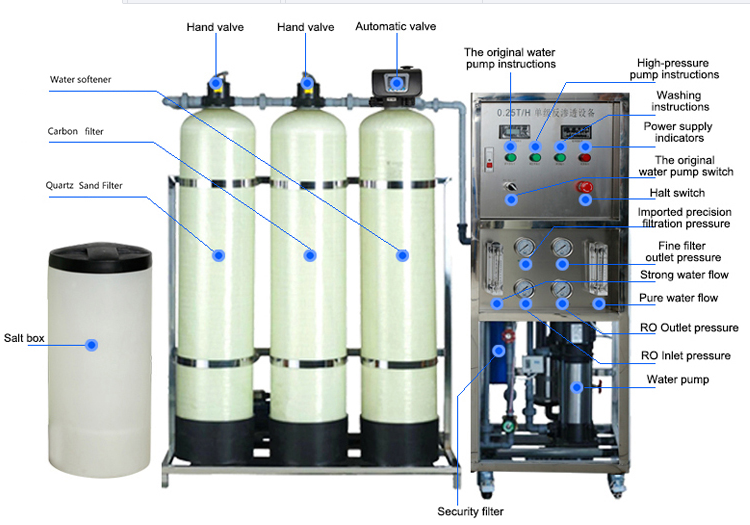

C.River water purification system each parts introsuction
D.Solar powered automatic water purification product list
No. | Name | Specification | Qty |
1 | Raw water tank | 1m³,PE/SUS | 1 set |
2 | Raw water pump | Model: CHL12-30, Q=1,H=26.5 | 1 set |
Material : SUS304 | |||
Power: 3PH 400V/50HZ,0.37KW | |||
3 | Multi-media filter | Model:Φ250×1350(mm),FRP | 1 set |
Filter material: silica sand 75kg | |||
Automatic control valve:F71B | |||
4 | Active carbon filter | Model:Φ250×1350(mm),FRP | 1 set |
Filter material: active carbon 25L | |||
Automatic control valve:F71B | |||
5 | Security filter | Model:Φ110×600(mm) | 1 set
|
Filter element: 20’’PP*1 | |||
6 | High-pressure pump | Model: CDM3-14 Q=1,H=103 | 1 set |
Material : SUS304 | |||
Power: 3PH 400V/50Hz,1.5KW | |||
7 | RO membrane | Model:LP21-4040 | 2 pic |
Salt rejection: 99.5% | |||
8 | RO system | Recovery: 60% | 1 set |
Design temperature:25 ℃ | |||
Membrane vessel: SS304 (4040)*2 | |||
9 | Product water tank | 0.5m³,SUS/PE | 1 set |
10 | Electrical control system | circuit breaker, contactor, thermal relay,etc | |
11 | Pipe | UVPC | |
12 | System accessories | valves,flow meter, pressure gauge,electrical fittings,etc |

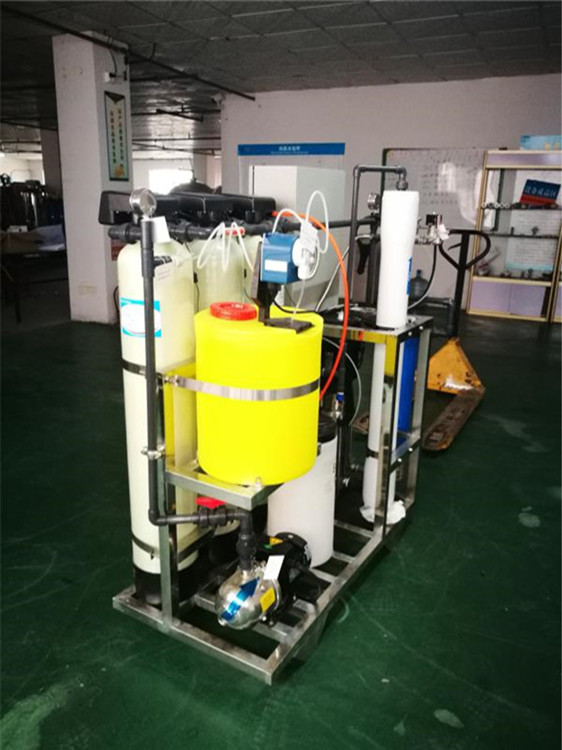

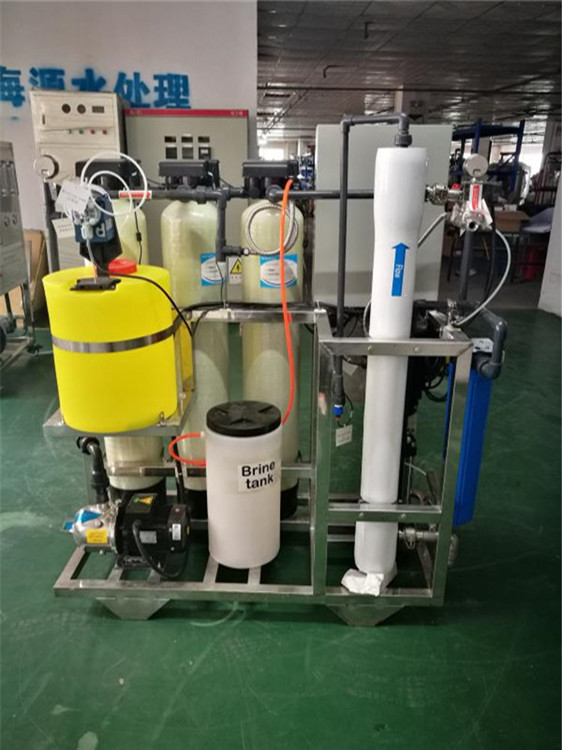

(The photo of Solar powered automatic water purification system)
E.Reverse osmosis in water purification system feature
1. Solar powered automatic water purification system use automatic control and semi-control.Pretreatment parts can adopt fiber glass or stainless steel material.
2. Reverse osmosis in water purification system has protected when no power, poor power, larger electrical current, leakage, short circuit.
3.River water purification system is compact, easy installation.
4. Solar powered automatic water purification system equipped with PLC and touch screen control and remote login .(Siemens PLC and Touch screen or Mitsubish PLC and tourch) This parts is optional.
5.Reverse osmosis in water purification system produce as per ISO and SGS standard and main parts accessories have obtained CE certification.
6 .Green water factory has more than 10 years production experience.
7 .Can supply overseas for installation and commissioning.
F.River water purification system application field design based on different requirement
1)The treated water can used for shower,cooking, drinking, washing,food, beverage, bottled drinking water, sachet/pouch packing pure drinking water treatment, also use for domestic ,poultry and irrigation.
2)Chemical industry, pharmaceutical industry pure water treatment.
3)Electronic industry, semiconductor industry ultrapure water treatment.
4)Electroplating.
5)Cosmetic products, car battery, liquid fertilizer production pure water treatment.
6)Edible cube ice, tube ice etc.
7)School, hotel, hospital, laboratory, surface treatment, hydraulic test, industrial boiler, power station boiler, high pressure boiler water treatment.
G.Solar powered automatic water purification our service
1.All the machine can be warranted for one year.
2.Can offer the engineer to overseas to offer the training.
3.Offer the technical support all the time.
4.Every machine before shipped will be test for some time to ensure without any problems.
5.Good production capacity, will arrange the shipment on time!
In order to send you correct information please tell me below information
1. How many liters outlet water per hour do you require?(500L/H,1000L/H, etc.)
2. Where is the source water from? (Eg,well water/borehole water, river water. etc.)- Do you have water analysis result or know the water quality? (The TDS=total dissolved solid, Fe, Mg, Hardness etc. whether over proof etc).
3. After treated, The water meet WHO drinking water standard, or as per bottle water standard or other industrial purpose?
4. Your local power is 380V/50hz 3phase or 380V/60Hz 3 phase, 440/60hz 3 phase or other voltage?
BTW: If source water is Municipal tap water or clean reservoir water or spring water no need report.
But please inform us the water characteristic.
- Solar powered automatic water purification based on different capacity and treated water standard or purpose. we will supply the Optimization solution for client.
- Solar powered automatic water purification system|Reverse osmosis in water purification system|River water purification system more related to information (different source water, capacity, voltage), please feel free to contact us!
Email: Sales@seawaterroplants.com
Mob&WhatsApp&WhatChat: +8618825874379 or +8613922972795
We will provide high-quality, all-round comprehensive professional services for project consulting, system design, manufacturing, installation and commissioning, personnel training, etc.

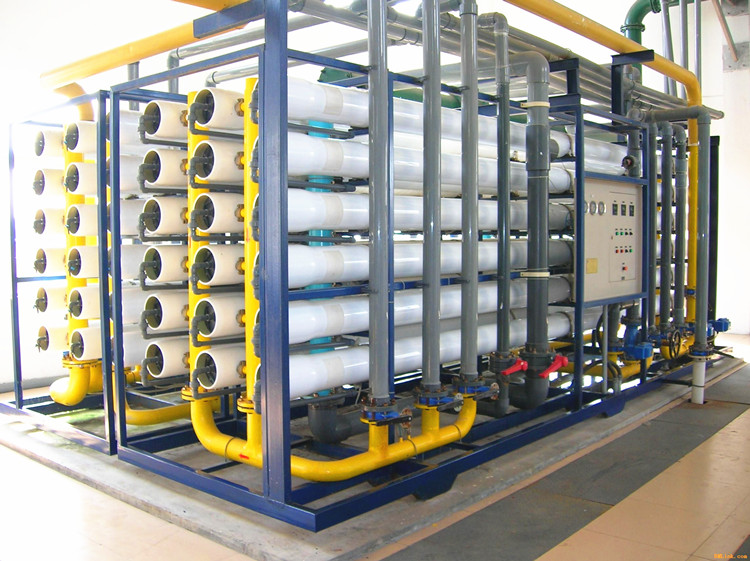

Industrial reverse osmosis water purification 120TPH
