Reverse osmosis water treatment for food & beverage

            HYWATER        UF | RO For Drinking

Reverse osmosis water treatment|Water purification reverse osmosis water plant|Ro reverse osmosis water plant price 30TPH for food & beverage



With the progress of society, people's awareness of food safety has been continuously improved, and the current food safety legal system is also constantly improved to adapt to the development of today's food safety situation.

 Haiyuan water treatment plant is to remove some harmful substances in the water that are not needed for production and life through various physical means. This type of plant is used for filtering and purifying water. Deionization method, ion exchange method, reverse osmosis method and other methods are often used to prepare pure water. Now purified water is widely used by us for domestic water, industrial production water, medical and sanitary water, food and beverage winery water, agricultural production water, electroplating coating water, electronic power textile and paper water, etc.



A.Reverse osmosis water treatment process

Raw water pump→ Quartz sand filter→ activated carbon filter→ (water softener)→security filter → high pressure pump →Reverse osmosis system→ (ozone generator)→ purified water tank

 (The client should supply all the water tank )



B.Water purification reverse osmosis water function of every part

1.  Raw water pump-- provide the pressure to quartz sand filter/active carbon filter/ water softener

2.  Sand filter-- get rid of turbidity, suspended matter

3.  Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.

4.  Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.

5.  Security filter--prevent large particles into RO membrane, accuracy is 5um,

6.  High pressure pump-- Provide the high pressure to RO membrane

7.  RO system-- main part of the plant. The RO membrane's desalting rate can reach 97% and above, removing over 99% ions.



C.Ro reverse osmosis water plant price features

1.The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures.

2.The reverse osmosis method to adopt larger osmotic pressures is used to obtain the purpose to separate, extract, purify and condense.

3.More than 97% soluble salts and 99%glues, microbe, particulate and organic substances and etc can be removed with the reverse osmosis.

4.It becomes the most idea equipment for the modem program of pure water, hyper pure water, and airspace water. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high water quality, easy operation and maintenance.





D.Water purification reverse osmosis water treatment more different model of the product for your reference

Model

Capacity

Inlet
Pipe(Inch)

Outlet
Pipe(Inch)

Rated Power
(KW)

Demension
L*W*H (CM)

Quotation

EXW USD

Ship Weight
(Kg)

JSPS-0.25T

1500GPD(0.25m3/h)

1/2"

1/2"

1.65

180*90*170

1880-2179

200

JSPS-0.5T

3000GPD(0.5m3/h)

3/4"

1/2"

1.65

180*90*170

2183-2494

220

JSPS-0.75T

3000GPD(0.5m3/h)

3/4"

1/2"

1.65

180*90*170

2547-2872

300

JSPS-1T

6000GPD(1.0m3/h)

1"

3/4"

1.65

190*100*210

2982-3326

350

JSPS-1.5T

9000GPD(1.5m3/h)

1"

3/4"

2.3

190*100*210

3711-4238

370

JSPS-2T

12000GPD(2.0m3/h)

1-1/4"

1"

3

230*100*210

4612-5139

450

JSPS-2.5T

15000GPD(2.5m3/h)

1-1/4"

1"

4

230*100*210

5442-6492

520

JSPS-3T

18000GPD(3.0m3/h)

1-1/2"

1"

5.5

245*100*210

7526-8399

610

JSPS-4T

24000GPD(4.0m3/h)

1-1/2"

1-1/4"

7

275*100*210

8970-13127

740

JSPS-5T

30000GPD(5.0m3/h)

1-1/2"

1-1/4"

7

300*100*210

10308-14411

880



E.Our service

1.All the machine can be warranted for one year.

2.Can offer the engineer to overseas to offer the training.

3.Offer the technical support all the time.

4.Every machine before shipped will be test for some time to ensure without any problems.

5.Good production capacity, will arrange the shipment on time!



In order to send you correct information please tell me below information

1. How many liters outlet water per hour do you require?(500L/H,1000L/H, 50m3/hr,etc.)

2. Where is the source water from? (Eg,well water/borehole water, river water. etc.)- Do you have water analysis result or know the water quality? (The TDS=total dissolved solid, Fe, Mg, Hardness etc. whether over proof etc).

3. After treated, The water meet WHO drinking water standard, or as per bottle water standard or other industrial purpose?

4. Your local power is 380V/50hz 3phase or 380V/60Hz 3 phase, 440/60hz 3 phase or other voltage?

BTW: If source water is Municipal tap water or clean reservoir water or spring water no need report.

But please inform us the water characteristic.

Water purification reverse osmosis water plant based on different capacity and treated water standard or purpose. we will supply the Optimization solution for client.

Water purification reverse osmosis water plant|Reverse osmosis water plant|Ro reverse osmosis water plant price more related to information (different source water, capacity, voltage), please feel free to contact us!

Email: Sales@seawaterroplants.com

Mob&WhatsApp&WhatChat: +8618825874379 or +8613922972795



We will provide high-quality, all-round comprehensive professional services for project consulting, system design, manufacturing, installation and commissioning, personnel training, etc.

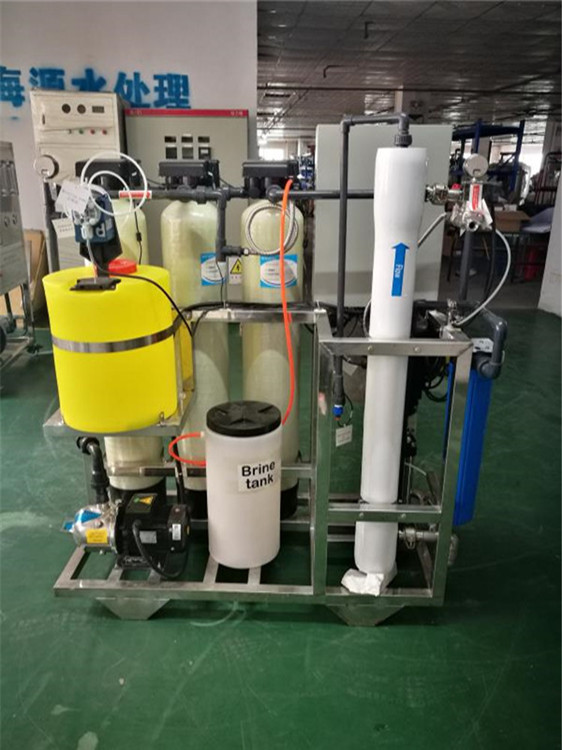

Reverse osmosis in water purification system 500LPH
