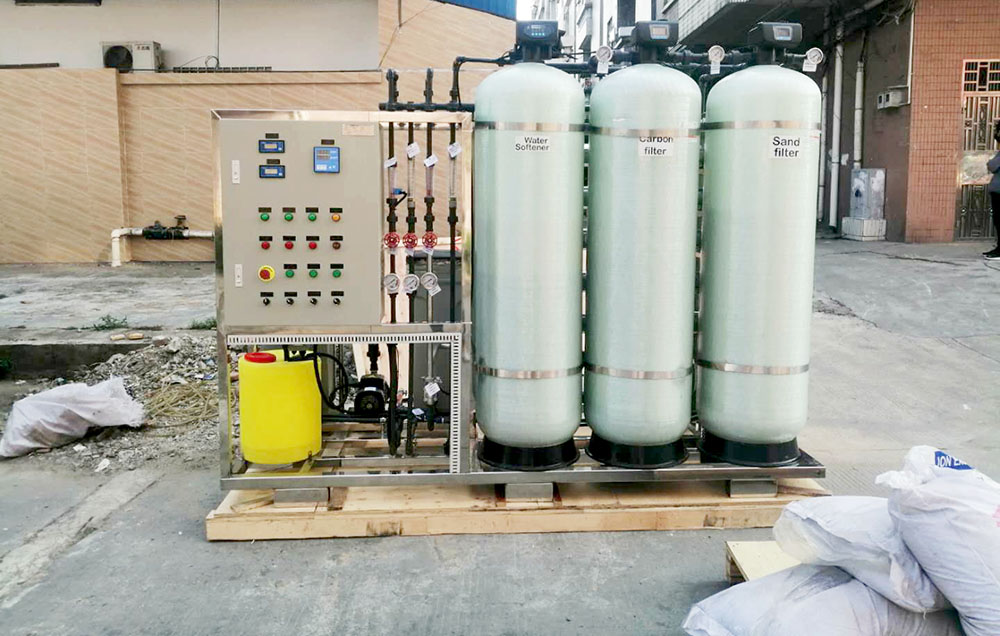

RO EDI deionized water plant 1000LPH
RO EDI deionized water plant | EDI deionized water plant | RO deionized water
I. RO EDI deionized water plant Design Scope:
1. Raw water: tap water (TDS = 500ppm)
2. Product water: pure water (conductivity <0.1 µS / cm)
3. Water temperature: 2—50 ℃
4. Voltage: 380V, 60Hz, three phase
5. Power supply: 4.05kw / hr
6. Size: L2.5 × W0.8 × H1.9 (m)
7. Delivery: 6m3 after packing.
II. EDI deionized water plant Process flow:
Source water tank → Feed water pump → Sand filter → Activated carbon filter → Water softener → PH regulation device → Safety filter → High pressure pump → RO system → RO water tank → Pump EDI booster → EDI system → Pure water tank
III. RO deionized water control method:
The whole system uses the full automatic control model, both models can be swapped accordingly. Sand filter and carbon filter with automatic and manual backwash. The RO system is automatically downloaded at every startup and shutdown. Automatic stop of high water level, automatic start of low water level. Protected pump without water. Protected when there is no power, low power, larger electric current, leakage, short circuit
IV. RO EDI Deionized Water Plant Technical Details:
Name | Specification | Unit |
Source water tank | Material: PE/SUS/RC Capacity: 3m3 | 1 set |
Feed water pump | Model: CHL2-40 Q= 2.5m3/h H= 42m Material: SUS304 Power: 1.1KW Brand: CNP/CHINA | 1 set |
Accessories | Base,regulating valve, check valve, etc. | 1 lot |
Sand filter | Model:Φ460×1670(mm) Material: FRP Brand: JISHUI/CHINA | 1 set |
Quartz sands | Application: Get rid of turbidity, suspended matter, organic matters, colloid ,etc. | 200 kg |
Control valve | Use: AUTO-F67B Brand: RUNXIN/CHINA | 1 set |
Activated carbon filter | Model:Φ460×1670(mm) Material: FRP Brand: JISHUI/CHINA | 1 set |
Activated carbon | Application: Remove the color, free chloride, organic matter, harmful matter, etc. | 75 kg |
Control valve | Use: AUTO-F67B Brand: RUNXIN/CHINA | 1 set |
Water softener | Model:Φ460×1670(mm) Material: FRP Brand: JISHUI/CHINA | 1 set |
Resin | Model: 001×7 | 100 liter |
Control valve | Use: AUTO-F63B Brand: JISHUI/CHINA | 1 set |
Salt tank | Material: PE Volume: 100L | 1 piece |
PH regulation device | Metering pump: KCL-635 Brand: SEKO/ITALY | 1 set |
Chemical tank | Material: PE Volume: 40L | 1 piece |
Accessories | PH sensor, valve fittings, etc. | 1 lot |
Security filter housing | Material: Stainless Steel Specifications: Φ159×500 Brand: JISHUI/CHINA | 1 set |
Security filter element | Model: PP 20" | 1 piece |
High pressure pump | Model: CR3-21/2.2kw Q=2.5m3/h H=118m Material: SUS304 Brand: GRUNDFOS/DENMARK | 1 set |
Accessories | Base,regulating valve, check valve, etc. | 1 lot |
RO membrane | Model: LP21-4040 Specification: 4040 Material: Aromatic poly-amide Desalination rate: 99.5% (single) Brand: VONTRON/CHINA | 5 piece |
RO membrane housing | Material: SUS304 Specification: 4040×1 Brand: JISHUI/CHINA | 5 piece |
Accessories | Valves, flow meters, pressure gauges, etc. | 1 lot |
RO water tank | Material: PE/SUS/RC Capacity: 1.5m3 | 1 piece |
EDI feed water pump | Model: CHL2-30/0.75KW Q= 1.0m3/h H= 37.5m Material: SUS304 Brand: CNP/CHINA | 1 set |
Accessories | Base,regulating valve, check valve, etc. | 1 lot |
EDI system | Model: PND-1000L/500W Brand: PND/CHINA | 1 set |
Accessories | EDI power supply×1 Flow Switch ×1 Flow meter×2 Pressure gauge×2 Brand: Chinese famous brands | 1 lot |
Frame | Material: Stainless Steel | 1 set |
Full-auto | Application: AC contact-or, time relay, insurance etc electrical components, electric cabinet, Wire and cable. Brand: China famous brand | 1 unit |
Pipes | Low pressure pipeline Material: UPVC | 1 lot |
High pressure pipeline Material: SUS304 | 1 lot | |
Pure water tank | Material: PE/SUS/RC Capacity: 1m3 | 1 piece |
V. Trade terms of the EDI deionized water plant
1. Payment term: 30% deposit, 70% T / T paid before delivery
2. Lead time: 6 weeks after receiving T / T payment
3. Packing: wooden box (standard export packing)
4. The warranty period: 1 year
SAW. RO deionized water Contact
1. Whatsapp / Wechat / Call me through +86 13631738120
2. Email: sales004@water-sy.com
More inquiries related to RO EDI deionized water plant | EDI Deionized Water Plant | RO deionized water (Different water source, capacity, voltage), please feel free to contact us!
