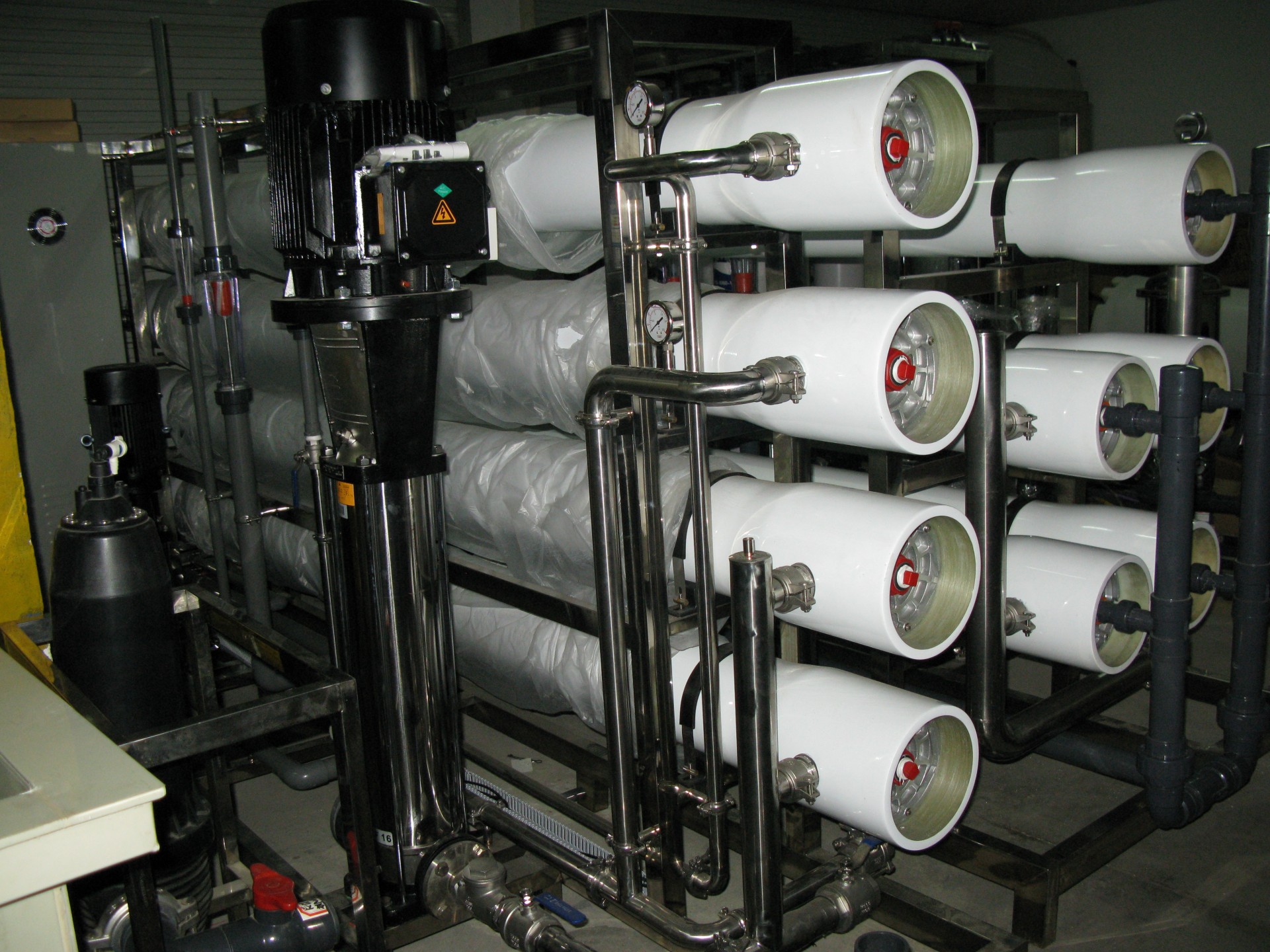

Commercial membrane reverse osmosis drink

Commercial membrane reverse osmosis drink|Commercial reverse osmosis water|

Commercial reverse osmosis 8TPH



A.Commercial membrane reverse osmosis drink design basis


1. Feed water: Well water


2. Product water: Bottled water


3. Water temperature: 4—45℃


4. Production capacity: 8TPH


5. Voltage: 380V 50Hz, 3 phase


6. Power supply: 13.5KW



B.Commercial reverse osmosis water process


Raw water pump→ Quartz sand filter→ activated carbon filter→ (water softener)→security filter → high pressure pump →Reverse osmosis system→ (ozone generator)→ purified water tank



(The client should supply all the water tank )



C.Commercial reverse osmosis application field design based on different requirement


1)The treated water can used for shower,cooking, drinking, washing,food, beverage, bottled drinking water, sachet/pouch packing pure drinking water treatment, also use for domestic ,poultry and irrigation.


2)Chemical industry, pharmaceutical industry pure water treatment


3)Electronic industry, semiconductor industry ultrapure water treatment


4)Electroplating


5)Cosmetic products, car battery, liquid fertilizer production pure water treatment


6)Edible cube ice, tube ice etc.


7)School, hotel, hospital, laboratory, surface treatment, hydraulic test, industrial boiler, power station boiler, high pressure boiler water treatment


D.Commercial membrane reverse osmosis drink more different models for your reference


Model

Capacity

Inlet
Pipe(Inch)

Outlet
Pipe(Inch)

Rated Power
(KW)

Demension
L*W*H (CM)

Quotation

(EXW USD)

Ship Weight
(Kg)

JSPS-0.25T

1500GPD(0.25m3/h)

1/2"

1/2"

1.65

180*90*170

1880-2179

200

JSPS-0.5T

3000GPD(0.5m3/h)

3/4"

1/2"

1.65

180*90*170

2183-2494

220

JSPS-0.75T

3000GPD(0.5m3/h)

3/4"

1/2"

1.65

180*90*170

2547-2872

300

JSPS-1T

6000GPD(1.0m3/h)

1"

3/4"

1.65

190*100*210

2982-3326

350

JSPS-1.5T

9000GPD(1.5m3/h)

1"

3/4"

2.3

190*100*210

3711-4238

370

JSPS-2T

12000GPD(2.0m3/h)

1-1/4"

1"

3

230*100*210

4612-5139

450

JSPS-2.5T

15000GPD(2.5m3/h)

1-1/4"

1"

4

230*100*210

5442-6492

520

JSPS-3T

18000GPD(3.0m3/h)

1-1/2"

1"

5.5

245*100*210

7526-8399

610

JSPS-4T

24000GPD(4.0m3/h)

1-1/2"

1-1/4"

7

275*100*210

8970-13127

740

JSPS-5T

30000GPD(5.0m3/h)

1-1/2"

1-1/4"

7

300*100*210

10308-14411

880



E.Our service


1.All the machine can be warranted for one year.


2.Can offer the engineer to overseas to offer the training.


3.Offer the technical support all the time.


4.Every machine before shipped will be test for some time to ensure without any problems.


5.Good production capacity, will arrange the shipment on time!



Why need to provide the source water quality report?


1.The source water quality report can help engineers better understand the parameters of various indicators n the raw water, like the amount of all kinds of ions, bacteria, etc. Provide feasibility solution based on various parameter of raw water.


2. TDS(Total dissolved solid) and residual chlorine value is very import. before designing the proposal, engineers select high different pressure pumps with different pressures based on TDS value to make sure that the system can produce the clean water normally. Select the appropriate stainless steel material based on the residual chlorine to avoid the water leakage caused by corrosion.


3.From water analysis report can see the iron and manganese, turbidity, bacteria whether exceed the standard. Engineers can design the process flow chart and solution which best fit the demand to help reduce unnecessary expense which can help customers save the cost.


4. Engineers design the Commercial membrane reverse osmosis drink suitable proposal based on raw water quality report and product water purpose/standard which can operate normally and best fit the customer demand.


BTW: If source water is Municipal tap water or clean reservoir water or spring water no need report.

But please inform us the water characteristic.


   - Commercial membrane reverse osmosis drink based on different capacity and treated water standard or purpose. we will supply the Optimization solution for client.



   - Commercial membrane reverse osmosis drink|Commercial reverse osmosis water|Commercial reverse osmosis more related to information (different source water, capacity, voltage), please feel free to contact us!


Email: Sales@seawaterroplants.com

Mob&WhatsApp&WhatChat:

+8618825874379 or +8613922972795



We will provide high-quality, all-round comprehensive professional services for project consulting, system design, manufacturing, installation and commissioning, personnel training, etc.
